Mercedes Audio Upgrade: The Complete 2025 Guide

Mercedes audio upgrade projects demand precision-engineered solutions that perform under pressure. Stock systems fail when you need real power and clarity. Base audio systems lack depth and headroom. Even Burmester systems struggle with thin bass response and limited dynamics. The right upgrade transforms your mobile workspace into a precision-tuned environment.

This guide shows installers and builders exactly how to identify current systems, select the correct upgrade path, and deliver professional results. You'll master fitment requirements, cost structures, and proven performance gains. We cover component swaps through complete reference builds.

Do I Need A Mercedes Audio Upgrade? Identify Your Starting System

Know your starting point before selecting components. This determines your entire upgrade strategy.

Base vs. Burmester vs. Burmester 3D - How To Tell

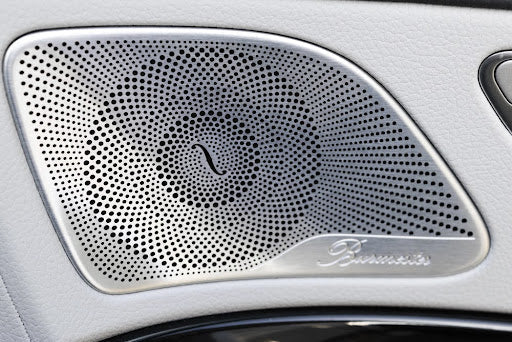

Check door speaker grilles and dash locations first. Base systems use plain plastic grilles with no branding. Burmester systems show metal mesh grilles with "Burmester" badges. Burmester 3D systems add a center dash tweeter above the infotainment screen.

Your build sheet or VIN decoder confirms the exact configuration. Equipment codes tell the complete story. Base systems show no premium audio options. Burmester appears as model-specific option codes.

What Improves With An Audio Upgrade

Vocal clarity jumps immediately with engineered components. Sound stage widens and locks into proper position. Bass extension reaches frequencies stock systems can't touch. Dynamic range increases without distortion at working volumes.

The difference proves itself instantly. Dialog cuts through road noise cleanly. Music reveals details buried in factory systems. Your mobile office becomes a precision-tuned environment.

Quick Decision Tree

Base systems need Stage A foundation, then Stage B or C expansion. Burmester owners jump straight to Stage B or C builds. Burmester 3D systems benefit most from Stage C reference configurations only.

Recommended Upgrade Paths (Stages) For Mercedes

We've engineered three upgrade paths that build systematically on proven foundations.

Stage A - Plug-And-Play Clarity Upgrade

This car audio foundation delivers clean, reversible improvements for professional installers. Plug-and-play DSP amplifier, premium front components, and center channel upgrade connect through factory harnesses. No cutting required.

Results include cleaned-up mids and highs across all frequencies. Center image locks into position permanently. Mild bass improvement comes standard. Professional installation takes 4-5 hours.

The Helix C Four DSP amplifier handles signal processing with precision. Ground Zero GZCS 100MB components deliver front stage performance that lasts. Perfect for lease vehicles and conservative builds.

Stage B - Add High-Quality Bass Foundation

Now we add serious low-end performance to the system foundation. JL Audio 8" subwoofers drop into factory footwell locations. Sound deadening reduces unwanted resonance. DSP gets retuned for deeper extension and control.

Bass response now reaches 45-50 Hz with authority. Your system sounds full-bodied without strain. Music gains impact and body that stock systems can't deliver. Movies provide theater-level dynamics.

This stage adds 2-3 installation hours to your timeline. The improvement in listening comfort proves itself immediately. Your Mercedes becomes a mobile reference environment.

Stage C - Reference Build

This represents our complete reference-level solution engineered for demanding professionals. Higher-power multi-channel DSP amplifier drives premium components throughout the cabin. Dual subwoofers provide headroom that won't quit. Every detail gets optimized for maximum performance.

Sound stage rivals high-end reference systems. Dynamic range handles any source material cleanly. Bass extension reaches below 40 Hz with control and authority. This build satisfies the most demanding ears in the field.

Expect 8-10 hours for complete installation and tuning. The investment delivers long-term satisfaction and proven resale value. Your Mercedes audio system becomes truly world-class.

What Fits My Mercedes? Model & Integration Overview

Different Mercedes platforms require specific approaches for optimal results.

Model Families & Stock Layouts

The W205 C-class and newer W206 use proven door speaker architectures. Both accommodate 4" midrange drivers plus separate tweeters in factory locations. The E-class W213 and W214 share this basic foundation.

S-class W222 and W223 models offer expanded installation space for reference builds. GLE W167 SUVs provide excellent cabin acoustics for dual subwoofer configurations. G-class W463 vehicles present unique challenges but exceptional potential.

Most platforms include front footwell subwoofer locations engineered for upgrade applications. These factory mounting spots work perfectly with drop-in replacements. The cabin coupling provides natural bass reinforcement.

LHD vs. RHD Configuration Notes

Left-hand drive and right-hand drive platforms require different installation approaches. Footwell orientations mirror each other. Wiring harnesses route through different body channels.

Component kits include variants for each market configuration. Always verify compatibility before ordering parts. Installation procedures adapt to match your specific platform requirements.

MOST/MBUX/NTG Integration Basics

Amplified factory systems need clean signal interfaces for professional results. The MOST fiber optic network carries digital audio throughout the vehicle. MBUX infotainment systems require specific adapters for aftermarket amplification.

Base systems often use direct T-harness connections instead. This simplifies installation considerably. Your build requirements determine which approach delivers optimal results.

Speakers That Matter: Front Components, Center Channel, Rear Fill

Component selection determines your sound quality foundation.

Front Door Components (4" + Tweeter)

Mercedes uses 4" midrange speakers in most door locations across platforms. Precision replacements need proper sensitivity ratings for factory power levels. Materials like Hexatech aluminum voice coils improve durability under demanding conditions.

Adapter rings help components fit factory mounting points exactly. Original grilles accommodate most upgrade components without modification. The Audison Prima series offers proven Mercedes compatibility.

Center Channel Performance

Center channel speakers handle dialog and vocal reproduction exclusively. This single speaker determines speech intelligibility completely. Dual voice coil designs require careful impedance matching for optimal results.

Keep EQ and level adjustments conservative during tuning. Excessive center channel output destroys front stage imaging. The goal remains natural, balanced vocal presentation that cuts through road noise.

Rear Fill Strategy

Rear speakers supplement your front stage subtly when tuned correctly. Aggressive rear fill destroys proper imaging and stage depth. High pass filters prevent bass competition with your subwoofer configuration.

Many reference builds minimize rear speaker output intentionally. Your front stage creates the primary listening experience. Rear fill adds gentle ambiance without competing for attention.

High-Quality Bass Performance: Footwell/Bulkhead Sub Upgrades

Mercedes factory subwoofer locations offer engineered advantages for upgrade applications.

Why Mercedes Front-Bulkhead "Free-Air" Works

Factory footwell mounting uses the entire cabin as a natural enclosure. This "free-air" loading provides bass reinforcement that sealed enclosures can't match. The cabin coupling extends low frequency response without added complexity.

Drop-in 8" subwoofers excel in these engineered locations. No custom enclosures needed. Installation becomes straightforward compared to trunk-mounted alternatives.

JL Audio 8" subwoofers deliver proven performance in these applications. The Alpine S2-A60M mono amplifier provides clean, controlled power delivery. This combination delivers surprising output from factory locations.

Single vs. Dual Footwell Configuration

Single subwoofer installations satisfy most listening requirements effectively. Adding the second footwell location increases output and impact measurably. Phase alignment becomes more critical with dual subwoofer setups.

Expect 3-4 dB more output from dual configurations. Low frequency extension improves as well. Installation complexity increases with two locations but results justify the effort.

DSP & Amplifier Upgrades: How We Tune Mercedes Systems

Digital signal processing makes the biggest difference in system performance and reliability.

Why DSP Changes Everything

DSP technology handles time alignment, crossovers, and EQ correction simultaneously with precision. Proper time alignment locks your sound stage into sharp focus. Crossovers prevent component damage and optimize frequency response.

EQ correction compensates for cabin acoustics and component limitations. Without DSP, even premium components sound mediocre in automotive environments. The processing transforms good parts into great systems.

Channel Mapping For Base vs. Burmester Signals

Base systems provide full-range signals that work directly with DSP amplifiers. Burmester systems pre-process their signals extensively. Our interfaces de-EQ these signals back to flat response for proper tuning.

The Blackbird DSP Amplifier excels with factory integration requirements. Channel summing preserves factory chimes and safety systems. Clipping protection prevents damage during high-output passages.

Our Proven Tuning Workflow

We start with pink noise measurements throughout the cabin space. RTA analysis reveals acoustic problems that need correction. Crossover starting points get set based on component capabilities and power handling.

Gain staging prevents distortion at any volume level. Phase alignment confirms all drivers work together properly. The final tune balances accuracy with real-world listening preferences.

OEM-Friendly Integration, Harnesses & Install Timeline

Professional installation preserves factory systems and warranty protection.

Reversible PnP Harnessing & Preserving Safety Systems

No-cut installations protect vehicle value and factory warranties. Plug-and-play harnesses maintain all factory functions without compromise. CAN bus communication stays intact for safety and convenience systems.

SOS emergency calling continues working normally. Active noise cancellation remains functional where equipped. Our certified installers understand these integration requirements completely.

MOST/MBUX Interface Requirements

Factory amplified systems need clean signal extraction for optimal results. MOST fiber optic interfaces provide direct digital signal access. These connections eliminate noise floor issues that plague other approaches.

MBUX system integration requires model-specific adapters for stability. Proper interfaces improve performance measurably. Your installer explains compatibility requirements for your specific platform.

Non-Destructive Mounting & Timeline Expectations

DSP amplifiers mount in hidden locations using factory attachment points. Wiring harnesses route through factory paths for clean, professional results. No modifications remain visible after completion.

Stage A installations require 4-5 hours for complete integration. Stage B adds 2-3 hours for subwoofer installation and tuning. Stage C reference builds need 8-10 hours for complete optimization and testing.
